AKS 92-BMF-280

High pressure air flow, low noise and high efficiency thanks to the backward inclined impeller.
The product successfully passed dynamic and static balance tests performed in compliance with the ISO 1940 standard for optimum performance.
Suitable for various applications with models of different sizes.
Low energy consumption and high efficiency thanks to the external rotor mono-phase motor.
Maintenance-free motor bearings provide a silent and long-life performance.
Motor included in IP44 protection class and F insulation class.
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

Suitable for small, medium or big sized places:
Designed especially for ventilation of residences, offices, bathrooms, public toilets, shopping centers, sports centers, theatres, laboratories, factories, workshops, paint shops, storehouses, garages, etc.

OPTIONS OF USE

	Standard use with the on-off button.
	Possibility to use at desired speed by use of speed control devices.
	Thermal protection with sensors against overheating in hot places.

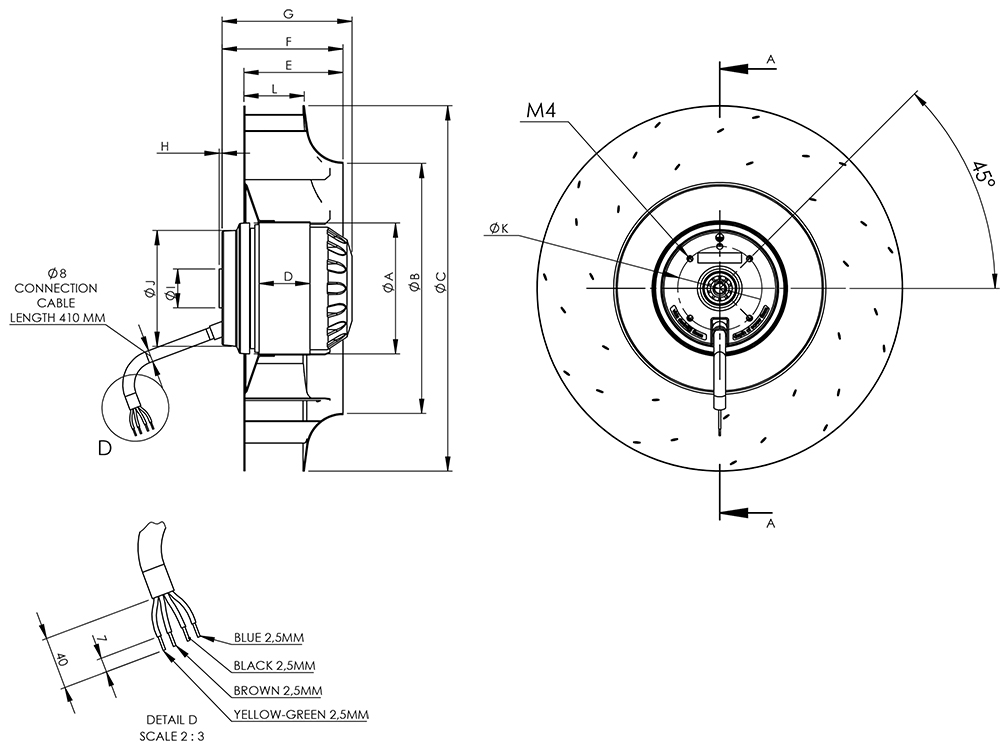

MODEL	A	B	C	D	E	F	G	H	I	J	K	L
AKS 92-BMF-280	92	193	281	42	80	96	100	2	26,8	80	58	51
