Aircol MOP 45/120

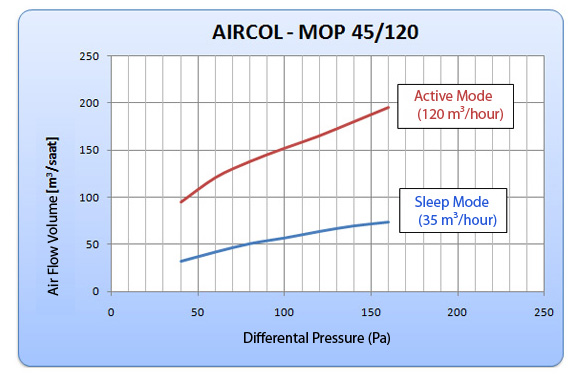

Able to operate in two different air flow volume modes (active mod and sleep mode) thanks to the electronic card included in the design.
When the automatic air extract element is started up by use of the switch, it operates in the active mode for 30 minutes and passes to the sleep mode afterwards.
An indispensable part of decorative places with its very slim and elegant front view.
Easy installation on ceilings with thickness between 0.5 and 20 mm thanks to the registered special adjustable installation mechanism.
Provides the highest possible protection against external factors such as malodors and moisture, and maintains its initial appearance thanks to the high-quality ABS plastic materialused.
Air leakage at duct connection point is minimized with the sealing placed on the air outlet.
The equipment can be installed vertically or horizontally on walls, ceilings, etc. with ease.
Front cover can be very easily removed and cleaned by being washed or rubbed off.
Optimum body and air transfer route design provides minimum sound level and high pressure suction (40 Pa – 160 Pa).
Has IPX1 protection and class-II protection which does not require earth connection.

Fields of Use

Small and medium sized places:
Suitable for ventilation of bathrooms, toilets, kitchens, storerooms, laundry rooms, garages, workplaces, etc.
Especially designed for being used in central ventilation systems together with roof fans.

OPTIONS OF USE

	Can be directly controlled with an on-off button, or operate in parallel connection to a lamp.
	The fan can be provided to continue to operate for a certain length of time after being switched off, by use of a time delay electronic card.
	Thermal protection with sensors against overheating in hot places.
	Special production for the ambience of the place with various color options.

MODEL	A	B	C	D	E	F	G	H	I	J	K	L
AIRCOL MOP 45/120	209	209	92	107	114	130	10	49	66,7	175	41,5	90,5

Create a hole of 180 x 180 mm on the installation surface.
Be sure that flanges of the adjustable installation apparatus are fully pushed into the air extract element.
Afterwards, place the air extract element in the hole as seen in the figure.
Push the flanges of the adjustable installation apparatus outward in order to install the air extract element on the surface.
Fix the fan to the surface by fastening the screws of the adjustable installation apparatus.
Install the front cover of air extract element to the body
