AKS 92-FMF-160

Light weight, high air flow and low noise level thanks to the forward inclined, galvanized steel sheet impeller design with thin blades.
Generating minimum level of vibration, the product successfully passed dynamic and static balance tests performed in compliance with the ISO 1940 standard, and able to maintain the same amount of air flow during operation.
Suitable for various applications with models of different sizes.
Included in the Class-I protection class.
Low energy consumption and high efficiency thanks to the external rotor mono-phase motor.
Maintenance-free motor bearings provide a silent and long-life performance.
Motor included in IP44 protection class and F insulation class
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

Suitable for use in any industrial heating or cooling application where air flow is needed.
Designed especially for use on solid fuel boilers, plastic packaging machines, hand dryers and for cooling applications on elevator motors and power panels.

OPTIONS OF USE

	Standard use with the on-off button.
	Possibility to use at desired speed by use of speed control devices.
	Thermal protection with sensors against overheating in hot places.

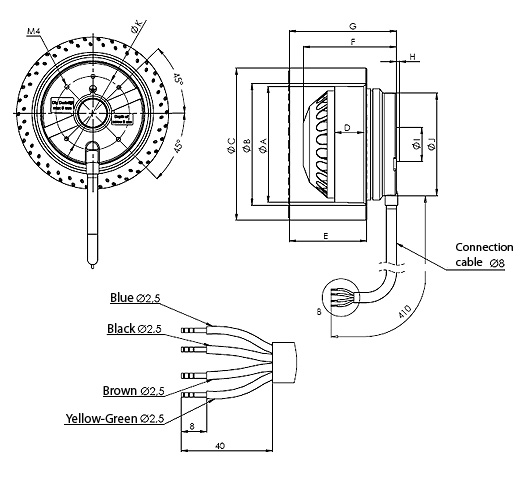

MODEL	A	B	C	D	E	F	G	H	I	J	K
AKS 92-FMF-160	92	140	160	42	61,5	95,5	101,5	2	27	80	58
