Aircol 250

A unique product with its elegant and wide front view where it is aimed to stimulate awareness.
Provides the highest possible protection against external factors such as malodors and moisture, and maintains its initial appearance thanks to the high-quality ABS plastic material used.
Minimum noise level thanks to the body having a wide air suction route and optimum fan design.
Suitable for high performance suction with wide grid openings.

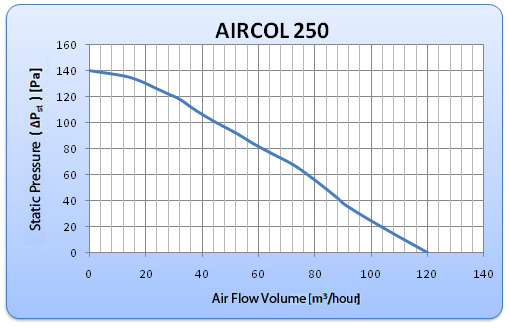

Possibility to produce fans with desired flow rate and speed values (80 – 120 m3/hour) based on the properties of the place of use.
When the fan is not in use, indoor area is protected from external effects such as dust, malodor and cold, and heat loss from inside to outside is prevented thanks to the air outlet flap.
Front cover can be very easily removed and cleaned by being washed or rubbed off.
Self lubricating motor bearings do not require maintenance and offer a silent, long-life performance.
IP24 protection against water splash.
Class-II protection which does not require earth connection.
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

Small and medium sized places:
Suitable for ventilation of bathrooms, toilets, kitchens, storerooms, laundry rooms, garages, workplaces, etc.
Suitable especially for being installed to the ceiling and used with a connection duct.

OPTIONS OF USE

	Can be directly controlled with an on-off button, or operate in parallel connection to a lamp.
	The fan can be provided to continue to operate for a certain length of time after being switched off, by use of a time delay electronic card.
	Thermal protection with sensors against overheating in hot places.
	Special production for the ambience of the place with various color options.

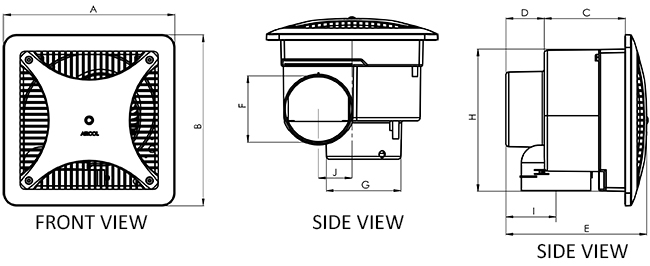

MODEL	A	B	C	D	E	F	G	H	I	J
AIRCOL 250	245	245	116	55	201,5	95	107	204	72	48

Create a hole of 210 x 210 mm on the installation surface.
Take the front cover of the fan by removing the four screws located on corners.
Stick the sound absorber sponges to the fan surface contacting the plasterboard as seen in the figure.
Afterwards, place the fan body by accurately centering the hole as seen in the figure.
Lastly, affix the front cover to the body by use of the screw, in such a manner that plasterboard is between the fan body and the cover.
