Aircol Summer

An indispensable part of decorative places with its elegant front view and special design providing silent operation.
Easy installation on ceilings with thickness between 0.5 and 20 mm thanks to the registered special adjustable installation mechanism.

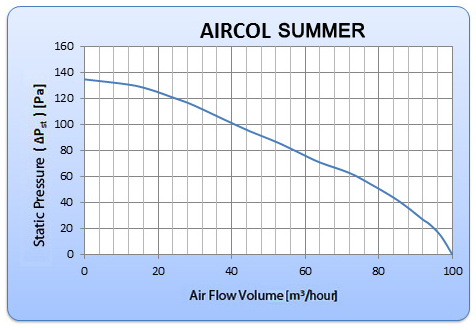

Possibility to produce fans with desired flow rate and speed values (80 – 125 m3/hour) based on the properties of the place of use.
When the fan is not in use, indoor area is protected from external effects such as dust, malodor and cold, and heat loss from inside to outside is prevented thanks to the air outlet flap.
Provides the highest possible protection against external factors such as malodors and moisture, and maintains its initial appearance thanks to the high-quality ABS plastic material used.
Front cover can be very easily removed and cleaned by being washed or rubbed off.
Minimum sound level and high pressure suction thanks to the optimum motor, body and fan design.
Self lubricating motor bearings offer a silent and long-life performance.
IP34 protection against water splash.
Class-II protection which does not require earth connection.
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

Small and medium sized places:
Suitable for ventilation of bathrooms, toilets, kitchens, storerooms, laundry rooms, garages, workplaces, etc.
Suitable especially for being installed to the ceiling and used with a connection duct.

OPTIONS OF USE

	Can be directly controlled with an on-off button, or operate in parallel connection to a lamp.
	The fan can be provided to continue to operate for a certain length of time after being switched off, by use of a time delay electronic card.
	Thermal protection with sensors against overheating in hot places.
	Special production for the ambience of the place with various color options.

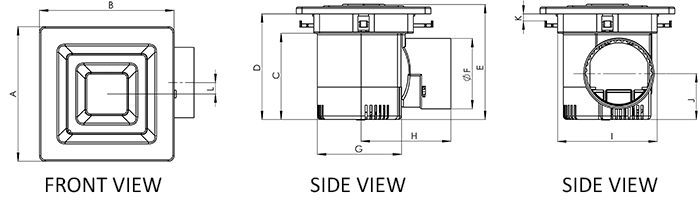

MODEL	A	B	C	D	E	F	G	H	I	J	K	L
AIRCOL SUMMER	189	189	121	148	161	99	118	126	140	64	17	16

Create a hole of 160 x 160 mm on the installation surface.
Be sure that flanges of the adjustable installation apparatus are fully pushed into the extract fan.
Afterwards, place the fan in the hole as seen in the figure, firstly the air outlet and then the remaining part.
Push the flanges of the adjustable installation apparatus outward in order to install the fan on the ceiling.
Fix the fan to the ceiling by fastening the screws of the adjustable installation apparatus as seen in the figure.
Install the front cover of the extract fan as seen in the figure by use of the four screws given with the product.
Lastly, place the screw caps.
