AKS 40-600 AC

Resistant to corrosion, high temperatures and other harsh conditions thanks to the body and impeller made of high-quality aluminum.
Light weight, high air flow and low noise level thanks to the forward inclined, aluminum impeller design with thin blades (Ø40 mm).
Generating minimum level of vibration, the product successfully passed dynamic and static balance tests performed in compliance with the ISO 1940 standard, and able to maintain the same amount of air flow during operation.
The product is custom designed for our customers with a speed range between 1000 and 2700 rpm and desired motor and power input terminal positions.
Low energy consumption and high efficiency thanks to the shaded-pole mono-phase motor.
Self-lubricating motor bearings and flexible silicone housing of the fan provide a silent and long-life performance.
Motor included in the F insulation class.
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

Suitable for use in any industrial heating or cooling application where air flow is needed.
Designed especially for use on window front, wall type, floor type convectors, electric heaters and similar applications.

OPTIONS OF USE

	Standard use with the on-off button.
	Possibility to use at desired speed by use of speed control devices.
	Thermal protection with sensors against overheating in hot places.

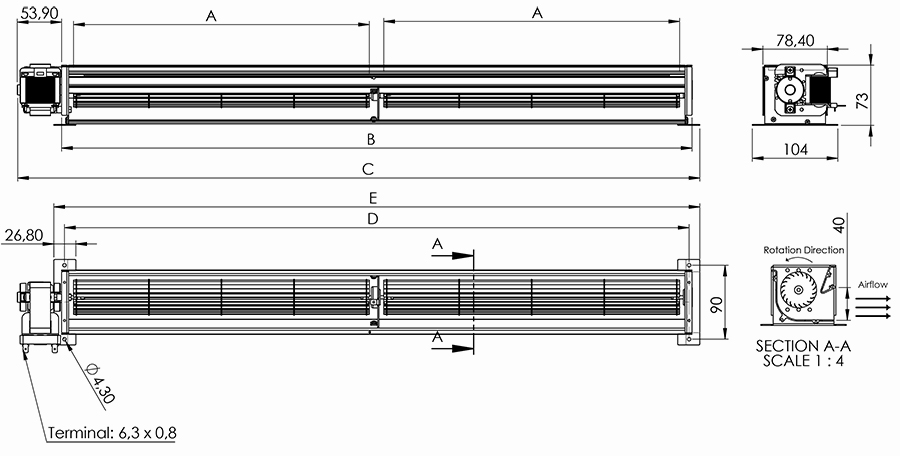

MODEL	A	B	C	D	E
AKS 40-600 AC	300	647	710	640	666
