AKS 676-12

  • Made of thin electrical steel sheet, the motor is resistant to corrosion, high temperatures, moisture and external factors like contamination and oils.
  • Low energy consuming two-pole, mono-phase motor.
  • Self-lubricating motor bearings provide a silent and long-life performance.
  • Can be operated at desired position.
  • Motor included in Class-I protection class and B insulation class.
  • Custom manufacturing with desired technical specifications is possible.
  • All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.
  • Suitable for use in any industrial heating or cooling applications.



OPTIONS OF USE

 Standard use with the on-off button.
 Possibility to use at desired speed by use of speed control devices.
 Thermal protection with sensors against overheating in hot places.
Voltage/Frequency(Volt/Hz)230/50
Current(A)0,1
Input Power(Watt)12
Output Power(Watt)3

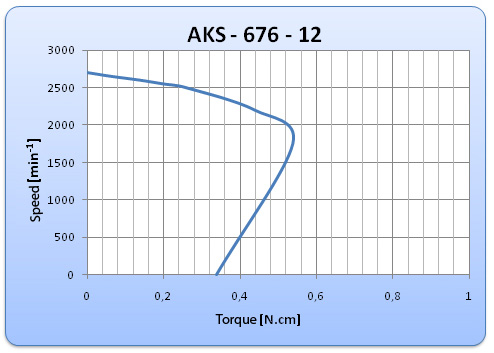

Nominal Torque(N.cm)0,2
Speed(Rpm)2600
Min. / Max. Ambient Temperature(ºC)-30/40
MaterialDC01/CR steel sheet
Protection ClassI
Motor Insulation ClassB
ApprovalTSE
CertificationCE
