Aircol 120

An indispensable part of decorative places with its very slim and elegant front view.
Provides the highest possible protection against external factors such as malodors and moisture, and maintains its initial appearance thanks to the high-quality ABS plastic material used.
Front cover can be very easily removed and cleaned by being washed or rubbed off.
Minimum sound level thanks to the optimum motor and body design.
Self lubricating motor bearings offer a silent and long-life performance.
The equipment can be horizontally or vertically installed on walls, ceilings, windows, etc. with ease.
Very simple installation thanks to the fastening bracket given with the product.
Suitable for any type of ducts and places with various sizes thanks to four models with different dimensions (Ø100, 120, 150, 200 mm).
IPX4 protection against water splash.
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

Technical Properties

Dimensions

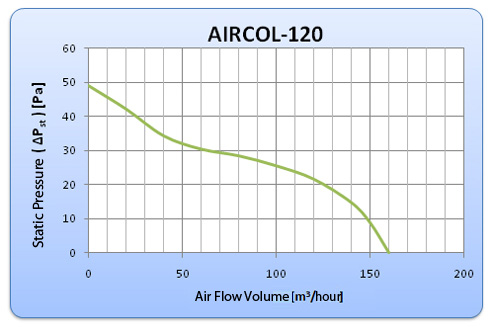

Performance Curves

Installation

Small and medium sized places:
Suitable for ventilation of bathrooms, toilets, kitchens, storerooms, laundry rooms, garages, workplaces, etc.
Suitable especially for direct installation or use with a maximum 3 meter length duct.

OPTIONS OF USE

	Can be directly controlled with an on-off button, or operate in parallel connection to a lamp.
	The fan can be provided to continue to operate for a certain length of time after being switched off, by use of a time delay electronic card.
	Thermal protection with sensors against overheating in hot places.
	Special production for the ambience of the place with various color options.

Voltage/Frequency	(Volt/Hz)	230/50
Current	(A)	0.13
Power	(Watt)	16
Air Flow	(m³/hour)	160
Speed	(Rpm)	2200
Pressure	(Pa)	50
Sound Pressure Level (@3m)	(dB (A))	33
Min. / Max. Ambient Temperature	(ºC)	-30 / 40
Material		ABS plastic
Protection Class / IP		II / IPX4
Motor Insulation Class		B
Approval		TSE
Certification		CE

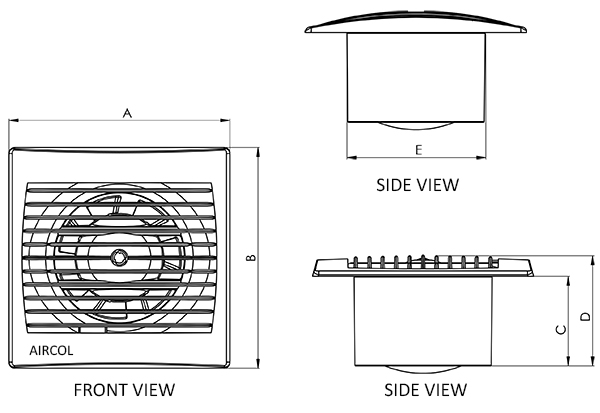

MODEL	A	B	C	D	E
AIRCOL 120	183,5	183,5	76	91	120

Installation Examples


Installation on ceiling	Installation on wall with an extension

Installation on wall	Installation on single or double layer glazing

Installation Procedure

Installtion on Glazing

» Create a hole of Ø124~ Ø129 mm on the glass.
» Stick the four sound absorber sponges given with the product on four corners of the fan.
» Lastly, install the fan on the glazing by use of the fastening bracket.

Installation on Wall

» Remove front cover.
» Create a hole of Ø124~ Ø129 mm on the wall.
» Create four Ø6 mm dowel holes on the wall for four corners of the fan and place the dowels in the holes.
» Stick the four sound absorber sponges given with the product on four corners of the fan in such a manner that the screw holes are not closed.
» Install the fan on the wall as seen on the detailed diagram.
