Aircol Lux

A product prioritizing simplicity and bringing together elegance and high performance.
Provides the highest possible protection against external factors such as malodors and moisture, and maintains its initial appearance thanks to the high-quality ABS plastic material used.
Minimum noise level and high pressure air suction thanks to the optimum fan design.
Specially designed body and front cover ensures effective suction from every direction and provides that the cover remains clean all the time.

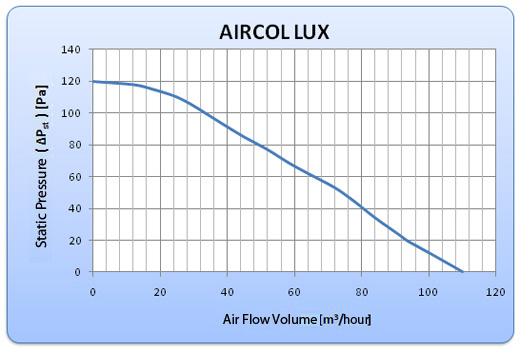

Possibility to produce fans with desired flow rate and speed values (80 – 110 m3/hour) based on the properties of the place of use.
When the fan is not in use, indoor area is protected from external effects such as dust, malodor and cold, and heat loss from inside to outside is prevented thanks to the air outlet flap.
Front cover can be very easily removed and cleaned by being washed or rubbed off.
Self lubricating motor bearings do not require maintenance and offer a silent, long-life performance.
IP24 protection against water splash.
Class-II protection which does not require earth connection.
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

Small and medium sized places:
Suitable for ventilation of bathrooms, toilets, kitchens, storerooms, laundry rooms, garages, workplaces, etc.
Suitable especially for being installed to the ceiling and used with a connection duct.

OPTIONS OF USE

	Can be directly controlled with an on-off button, or operate in parallel connection to a lamp.
	The fan can be provided to continue to operate for a certain length of time after being switched off, by use of a time delay electronic card.
	Thermal protection with sensors against overheating in hot places.
	Special production for the ambience of the place with various color options.

MODEL	A	B	C	D	E	F	G	H
AIRCOL LUX	238,5	212	118	20	166	97	163	190

Create a hole of 165 x 190 mm on the installation surface.
Take the front cover of the fan by stretching out the front clamps.
Create four Ø6 mm dowel holes on the installation surface for four corners of the fan and place the dowels given with the product in the holes.
Install the fan in the hole and fasten it with the screws given with the product.
Fix the front cover of the fan by firstly placing the front clamps and then the back clamps.
