Aircol S 450 Square

Resistant to erosion, high temperatures, moisture and acidic environment thanks to the body and impeller made of high-quality plastic reinforced with glass fiber.
Light weight, high strength and high performance thanks to the use of high-quality plastic reinforced with glass fiber for the body and the impeller.
Generating minimum level of vibration, the product successfully passed the tests performed in compliance with the ISO 1940 standard.
Protection against external factors with the front and back grid made of chrome coated wires.
Higher pressure and less noise at the same amount of air flow thanks to the optimum body and impeller design.
The equipment can be horizontally or vertically installed on walls, metal sheets, windows, etc. with ease.
Suitable for different sized places thanks to three models with different dimensions (Ø300, Ø400, Ø450, Ø500 mm).
The product offers IP24 protection.
Low energy consumption and high efficiency thanks to the external rotor mono-phase motor.
Motor bearings offer a silent and long-life performance without the need of maintenance.
Motor included in the IP44 protection class and F insulation class.
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

For various sized places:
Suitable for ventilation of factories, workshop, paint shops, storehouses, garages, greenhouses, closed animal houses, etc.
Designed especially for direct installation in order to discharge polluted air and provide fresh air.

OPTIONS OF USE

	Standard use with the on-off button.
	Possibility to use at desired speed by use of speed control devices.
	Thermal protection with sensors against overheating in hot places.

Voltage/Frequency	(Volt/Hz)	230/50
Current	(A)	1.8
Power	(Watt)	345
Capacitor	(µF)	15/400

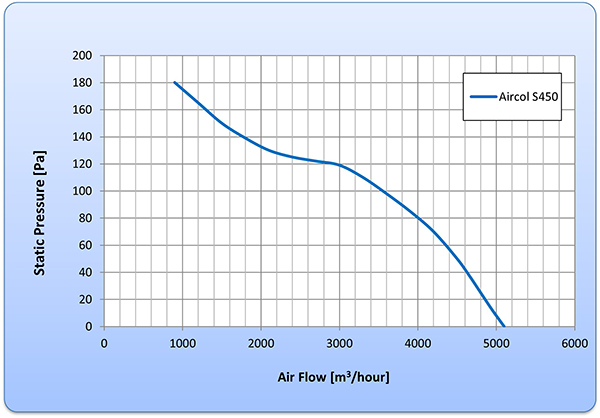

Air Flow	(m³/hour)	5100
Speed	(Rpm)	1470
Pressure	(Pa)	180
Sound Pressure Level (@3m)	(dB (A))	60
Min. / Max. Ambient Temperature	(ºC)	-25 / 50
Material		Aquamid plastic reinforced with glass fiber
Protection Class / IP		II / IP24
Motor Insulation Class		F
Approval		TSE
Certification		CE

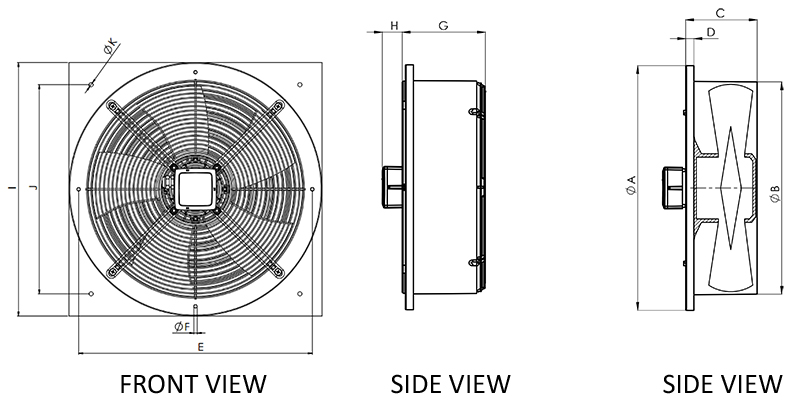

MODEL	A	B	C	D	E	F	G	H	I	J	K
AIRCOL S 450 SQUARE	550	471	176	20	504	8	204	49	545	445	10

Installation on Wall

Create a hole of Ø480 mm on floor.
Create four Ø10 mm dowel holes on the installation surface for the corners of the fan and place the dowels in the holes.
Install the fan in the hole as seen in the figure and fasten by use of M8 screws.

Installation on Metal Sheet

Create a hole of Ø480 mm on the metal sheet.
Create four M8 screw holes on the installation surface for the corners of the fan.
Place the fan in the hole as seen in the figure.
Fix the fan by fastening M8 screws with the M8 bolts.
