AKS 102-4ES-350

Product can be produced with suction/blowing air flow direction and single-phase/three-phase motor options.
Grill and impeller are made of cold rolled sheet metal, ensures long-lasting adhesion of the paint thanks to the coating applied before painting. Afterwards; high quality electrostatic powder paint resistant to sun rays (UV), rain water, sea water and similar harsh weather conditions is applied.
Product has minimum vibration level and has successfully passed the dynamic and static balance tests conducted according to ISO 1940 standards.
High efficiency and low noise level have been achieved with the optimum impeller design.
All protective and insulation materials in the energy line in the products are produced from non-flammable V0 plastic raw material.
Products have thermal protection against overheating of the motor in extraordinary situations.
High-temperature resistant silicone cable is used in the products.
High-temperature resistant insulation materials are used to provide insulation between the motor windings.
S3 class capacitor, which is the highest protection class against explosions, is used.
A specially designed sealed waterproof connection box produced with the overmould injection system is used.
With the IP67 cable gland used in our products, cable connections are protected against water and dust.
Product has IP56 protection.
Low energy consumption and high efficiency are achieved thanks to external rotor motor.
High temperature (-40°C ~+180°C) and moisture resistant ball bearings are used in the motor.
The motor is included in the IP56 protection class and F insulation class.
Our product meets the Erp 2015 energy efficiency directives.
All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Fields of Use

Technical Properties

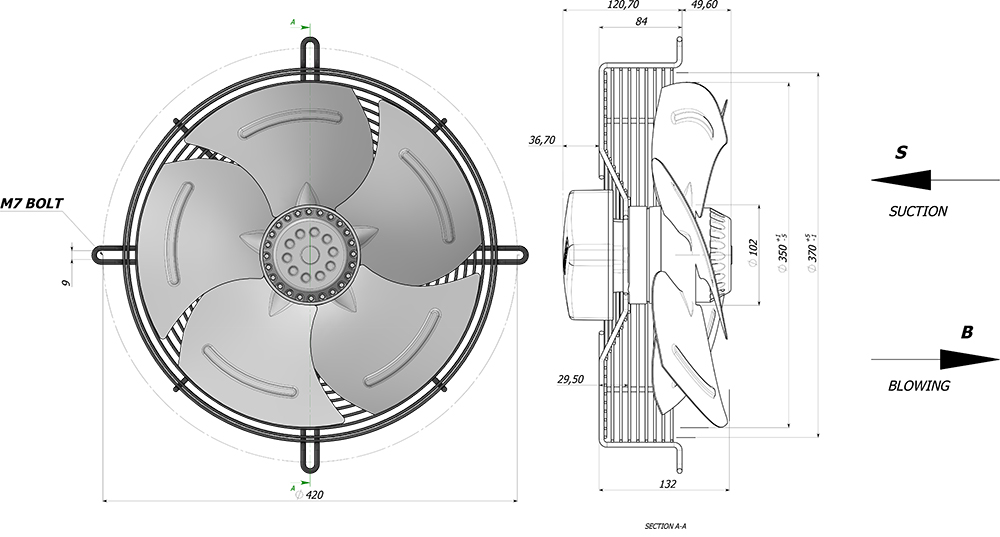

Dimensions

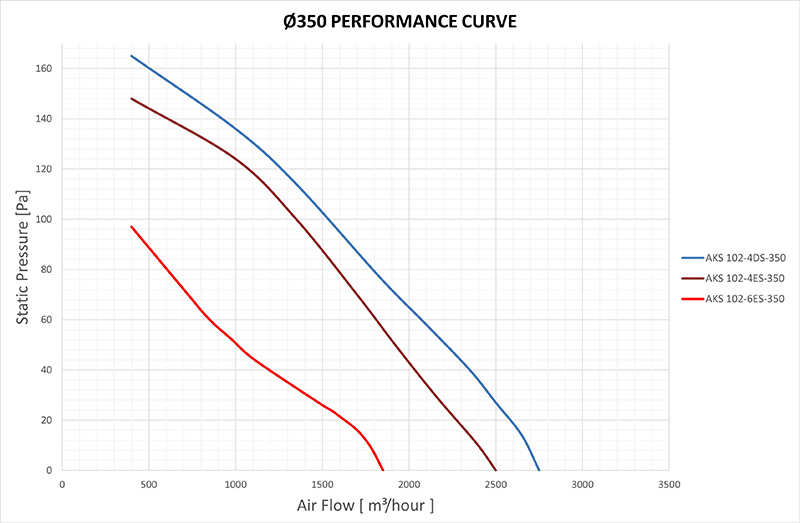

Performance Curves

Suitable for use in any industrial heating or cooling application where air flow is needed.
Especially used in condenser and chiller units, cold rooms and evaporator cooling applications.

OPTIONS OF USE

	Standard use with the on-off button.
	Thermal protection with sensors against overheating in hot places.

Voltage/Frequency	(Volt/Hz)	230/50
Current	(A)	0.40
Input Power	(Watt)	124
Capacitor	(µF)	4
Air Flow	(m³/hour)	2500
Speed	(Rpm)	1400
Sound Pressure Level (@3m)	(dB (A))	61
Min. / Max. Ambient Temperature	(ºC)	-30 / 60
Material		Metal Sheet
Ingress Protection Rating		IP56
Motor Insulation Class		F
Approval		TSE
Energy Efficiency		Erp2015
Certification		CE
